Floor plans & Specification
OPPORTUNITY ON ALL LEVELS
The flexible industrial units range from approx. 1,500 sq ft units through to larger self-contained single floors of 30,630 sq ft, and are available across multiple floors with full fit-out options.
Available Q1 2024.
Enquire now for pre-let opportunities
Download brochure for more information and detailed specification
Floor plans

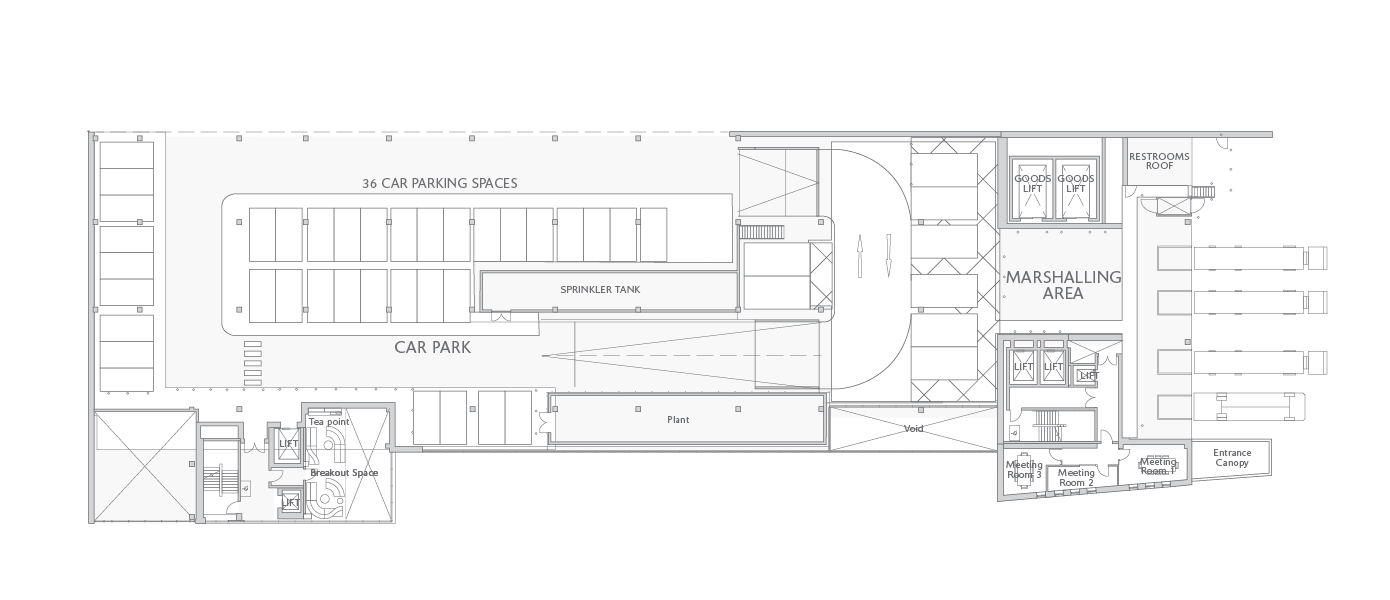

The ground floor consists of the reception area, management office, communal yard, lifts and parking for all floors. There is also cycle parking and showers for anyone cycling to work.
|
|
|
On the first floor, customers will have access to additional parking, meeting rooms and a break-out space.
|
|
|

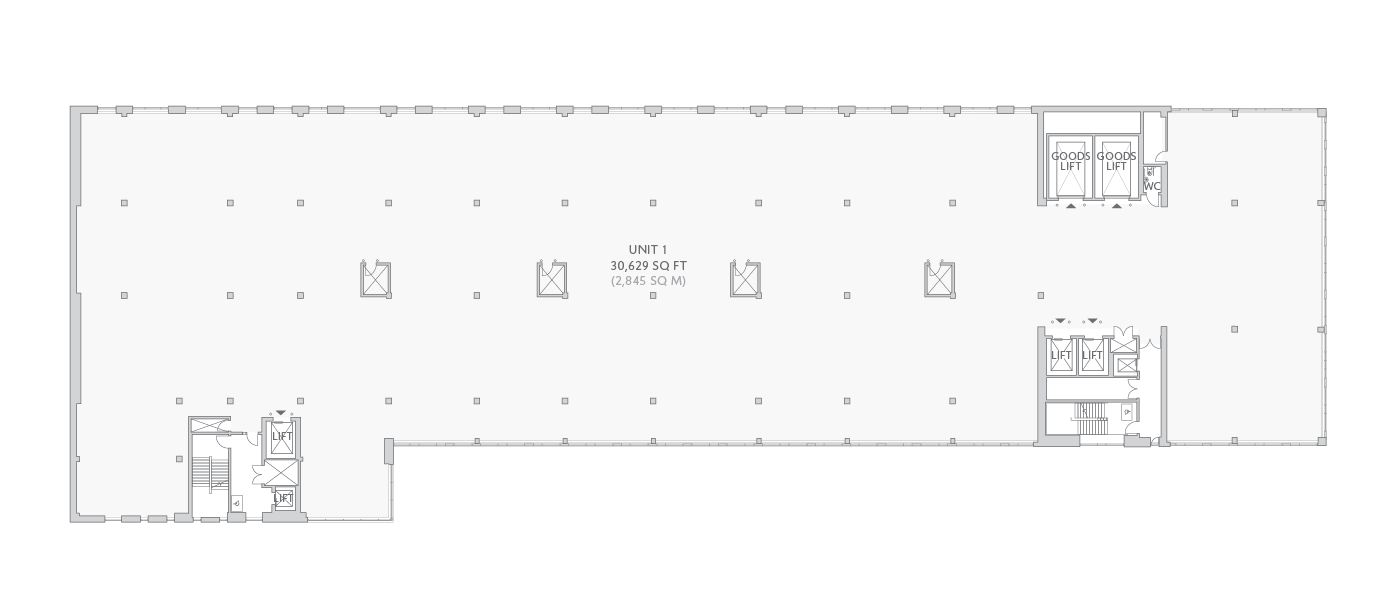

A single self-contained unit with lift provisions and separate pedestrian access. Available as a pre-let opportunity.
|
|

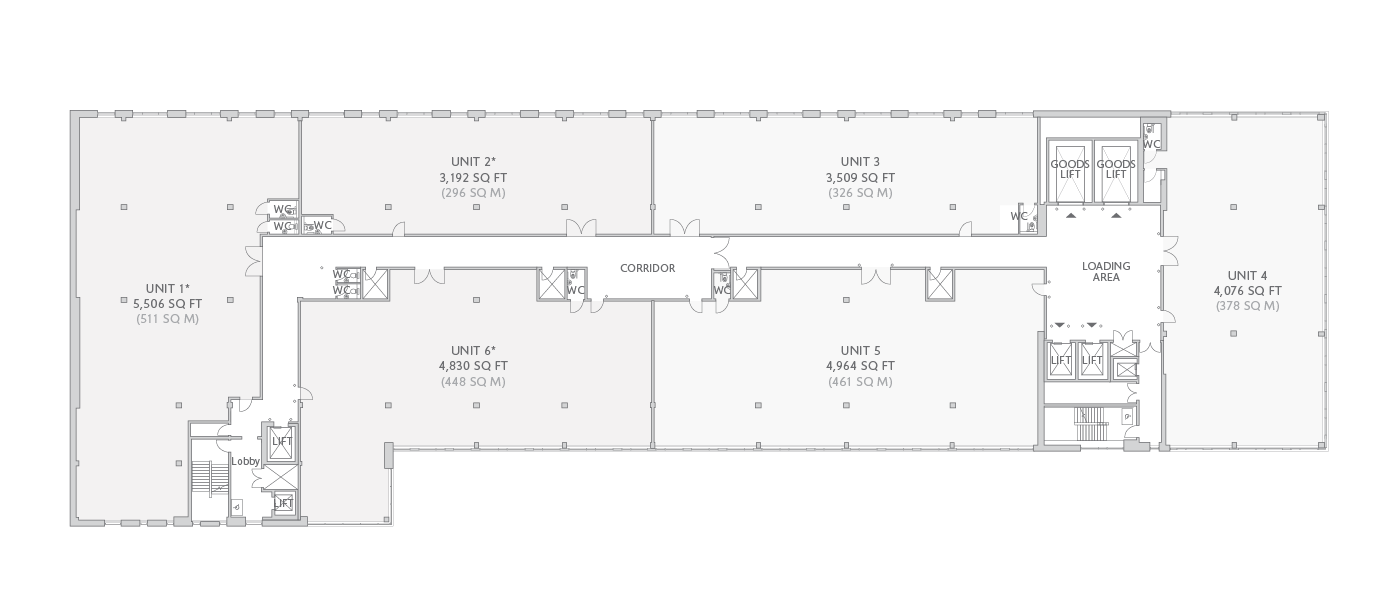

3-6 self-contained units with shared facilities and lift provisions.
|
|
|
*Units 1,2 & 6 will be fully fitted out ready for occupation with partitions, doors, LED lights, and comfort cooling / heating.

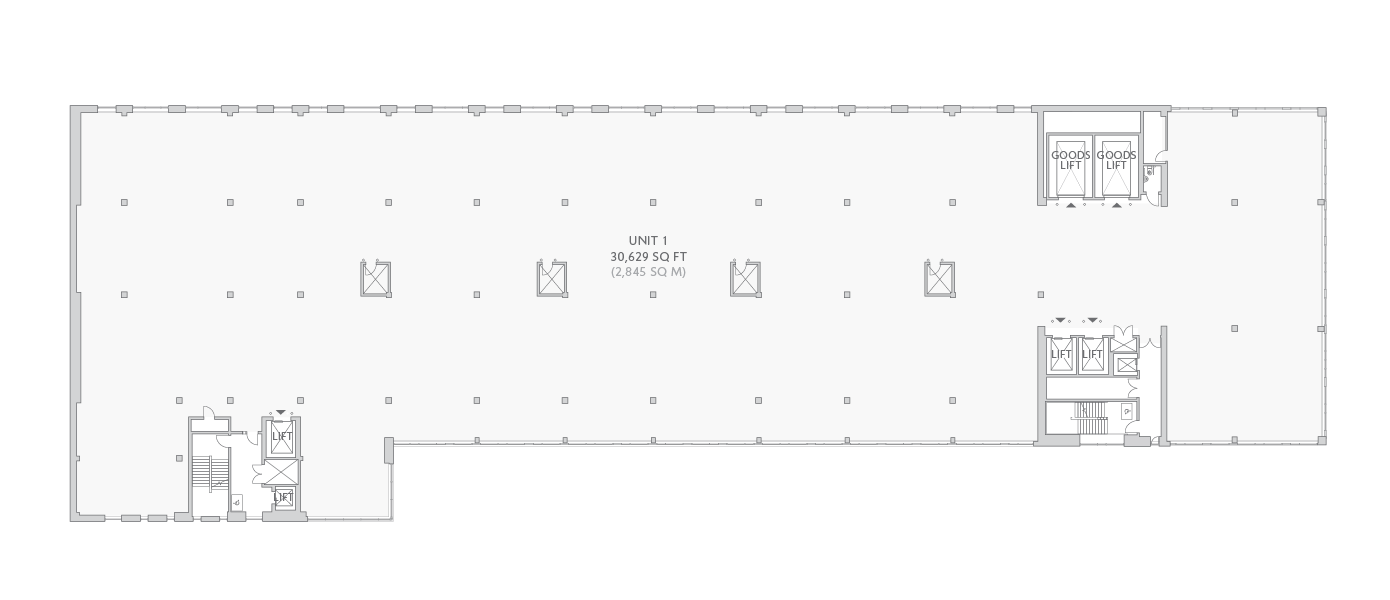

A single self-contained unit with lift provisions. Available as a pre-let opportunity.
|
|

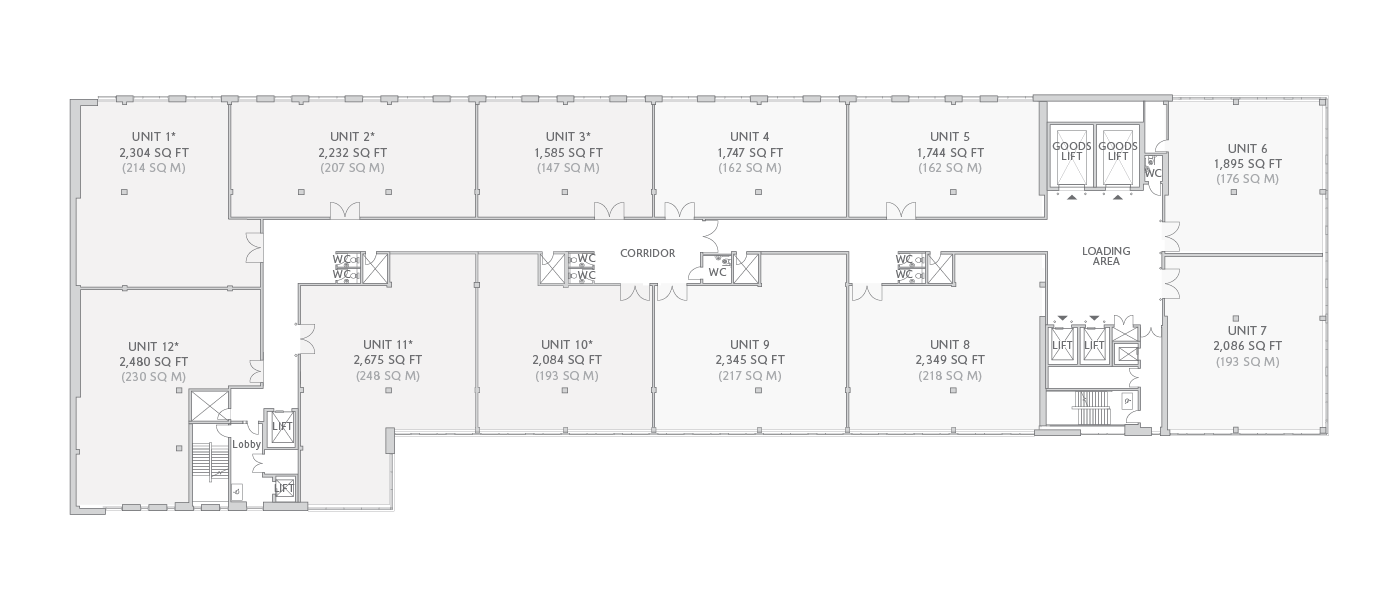

6-12 self-contained units with shared facilities and lift provisions.
|
|
|
* Units 1, 2, 3, 10, 11 & 12 will be fully fitted out ready for occupation with partitions, doors, LED lights, and comfort cooling / heating.
SPACE WITH FLEXIBILITY AND VERSATILITY AT ITS CORE
Specification
WAREHOUSE
- 6m clear height (floors 2 & 3)
- 4m clear height (floors 4 & 5)
- 15 kN/m2 floor loading (floors 2 & 3)
- 10 kN/m2 floor loading (floors 4 & 5)
EXTERNAL
- 80 allocated car parking spaces
- 8 van spaces
- 5 goods vehicle spaces
- Motorcycle spaces
- Yard suitable for HGVs and vans, with dock levellers and a scissor lift creating loading options for all vehicle sizes
ENHANCEMENTS
- Sprinkler system
- Minimum of 100 Amp Three Phase power per unit, dependent on size
- 5 service lifts: 2 x 6,500kg; 3 x 2,500kg
- LED lighting
SUSTAINABILITY
- BREEAM ‘Excellent’ (targeting)
- EPC ‘A’ rating (targeting)
- Photovoltaic panels
- 20 electric charging points (cars and vans)
- Air source heat pumps
- Living internal green wall
- Carbon Life modelling
WELLBEING
- Landscaped roof terrace with seating
- Dedicated cycle parking
- Comfortable break-out spaces
- Plentiful natural light
SECURITY & RECEPTION
- Dedicated reception service
- 24/7 on-site security
MEETING ROOMS
- Bookable meeting rooms, available for customers only
- Glazed screens
- Air conditioning
- Contemporary finishes
